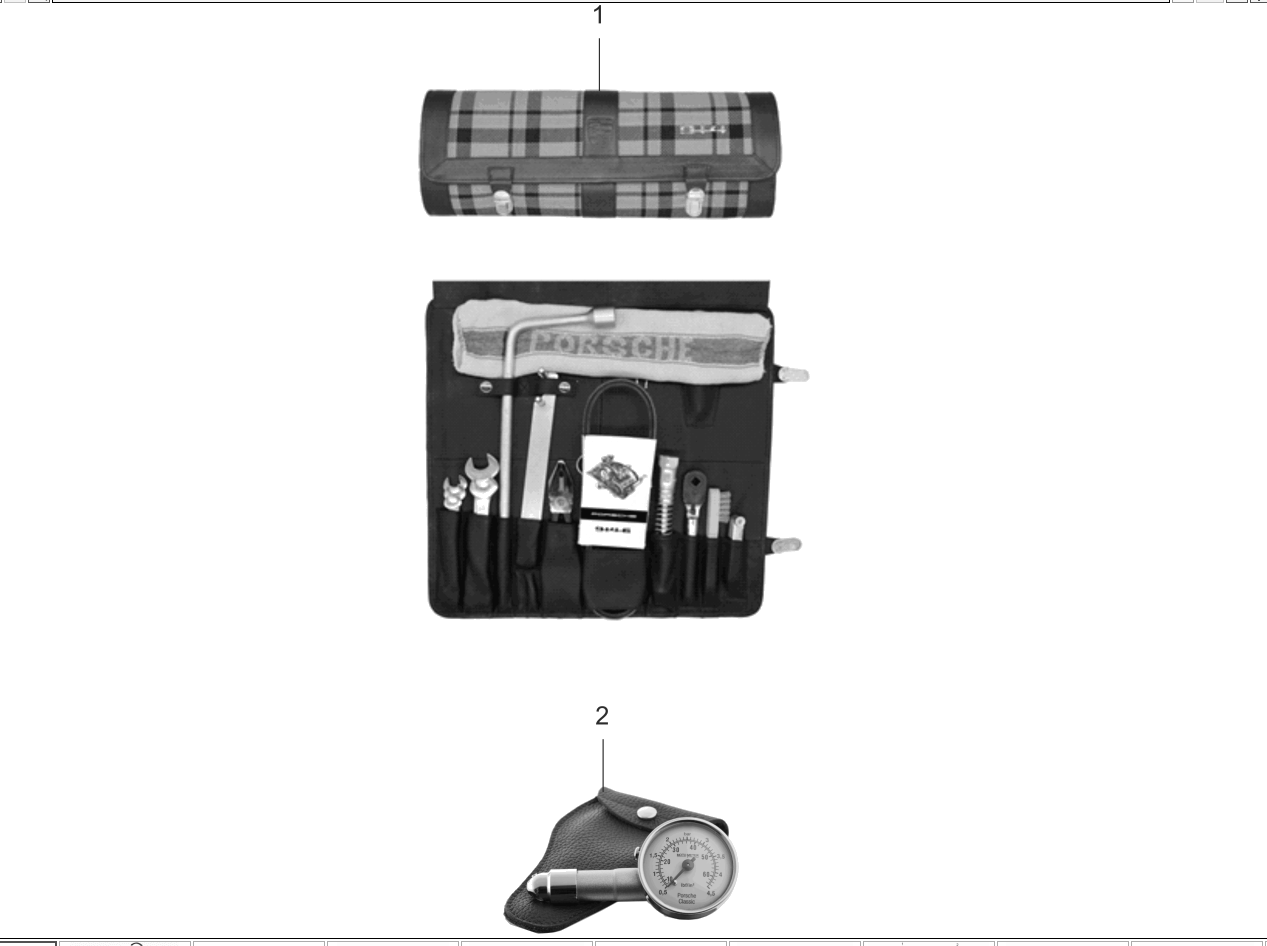

Illustration 001-00
Tool kit bag
111 parts on this diagram - Porsche 914, 1970-1976
See current prices & color 3D diagramsFree to browse part numbers here. Sign in free to unlock pricing, color-rendered diagrams, and the full interactive catalog.
Open in catalog →
| Pos | Part Number | Description | Model | Remarks | Qty |
|---|---|---|---|---|---|
| 1 | PCG91472110 | Tool kit bag | 914-4/914-6 | 1 | |
| - | PCG91472000 | Brochures | 914 | tool kit bag; 10 pcs | 1 |
| 2 | 91172220200 | Tyre pressure gauge | Porsche Classic | 1 | |
| - | 91472100110 Replaced by PCG91472110 | Tool kit bag | 914-6 | comprising: | 1 |
| - | 477012203A | Spark plug spanner | 1 | ||
| - | 477012227 | Angled screwdriver | 1 | ||
| - | 99957104502 | Wheel bolt wrench | 1 | ||
| - | 99919501102 | Keys | 8 X 9 / 110 MM | 1 | |
| - | 99919501202 | Keys | 10 X 11 / 126 MM | 1 | |
| - | 99919500702 Replaced by 99919501302 | Keys | 12 X 13 / 140 MM | 1 | |
| - | 99919501502 | Keys | 17 X 19 / 187 MM | 1 | |
| - | 99919501402 | Keys | 14 X 15 / 157 MM | 1 | |
| - | 99957101702 | Keys | 22 X 19 | 1 | |
| - | 99919100202 | Screwdriver | 1 | ||
| - | 90013700102 | Screwdriver bit, cross-point, PH1 | B 2 | 1 | |
| - | 99910700302 Replaced by 99910700502 | Pliers combination | 1 | ||
| - | 9991921765A | V-belt | MFC | 1 | |
| - | 91472101310 Replaced by 91172101300 | Bag | with:; fuse | 1 | |
| - | N 0171211 | Fuse | 1 | ||
| - | N 0171215 | Fuse | 1 | ||
| - | 91172170200 | Retaining bracket | for; v-belt pulley | 1 | |
| - | 411012021 Replaced by PCG91472110 | Tool kit bag | 914-4 | comprising: | 1 |
| - | 311012205A | WRENCH | for; wheel bolt | 1 | |
| - | 111012221 | Tommy bar for socket wrench | with:; handle | 1 | |
| - | 343012221 | Tommy bar | with:; handle | 1 | |
| - | N 0300551 | Wrench | 8 X 13 | 1 | |
| - | 251012243 | Removal tool | for; Hub cap | 1 | |
| - | 111012255 | SCREWDRIV | 1 | ||
| - | 411012201A | Wrench | for; spark plug | 1 | |
| - | 111012021B | Tool bag with tools | 914-1,7/1,8V | comprising:; /1,8/2,0 | 1 |
| - | 111012219 | Socket wrench for wheel bolts | 914-1,7/1,8V | for; wheel bolt; /1,8/2,0 | 1 |
| - | 111012221 | Tommy bar for socket wrench | 914-1,7/1,8V | with:; handle; /1,8/2,0 | 1 |
| - | N 0300571 | Keys | 914-1,7/1,8V | 10 X 13; /1,8/2,0 | 1 |
| - | 251012243 | Removal tool | 914-1,7/1,8V | for; Hub cap; /1,8/2,0 | 1 |
| - | 111012255 | SCREWDRIV | 914-1,7/1,8V | /1,8/2,0 | 1 |
| - | 91472101110 Replaced by 91172101105 | Jack | 1 | ||
| - | 91472111110 | Rubber ring | for; jack | 1 | |
| - | 91472202110 Replaced by 91172202101 | Bracket for jack | 914-1,7/1,8V | /1,8/2,0 | 2 |
| - | 91472210510 | Towing eye | 1 | ||
| - | 91472201510 | Bag | for; key | 1 | |
| - | 000061371 | Floor mat | 914-4 | 1 | |
| - | 91472100810 | Bag | 914-6 | comprising: | 1 |
| - | 91472101310 Replaced by 91172101300 | Bag | with:; fuse | 1 | |
| - | 99917005590 | Spark plug | Discontinued part; - BOSCH -; NEZ | 3 | |
| - | N 01781132 Replaced by 99917017990 | Spark plug | Discontinued part; - BOSCH -; NEZ | 3 | |
| - | 99917016590 Replaced by 99917017990 | Spark plug | - BOSCH -; W 5 DC; NEZ | 3 | |
| - | 90110590150 Replaced by 90110590151 | Set of valve springs | inner; outer | 1 | |
| - | 90110590151 | Set of valve springs | inner; outer | 1 | |
| - | 90110541700 | Cotter, split | 2-part | 2 | |
| - | 91110419303 Replaced by 96410411107 | Valve guide seal | valve | 1 | |
| - | 90110537002 | Adjusting screw | valve | 2 | |
| - | 99903400500 | Nut | 2 | ||
| - | 91110717601 Replaced by 91110717603 | Oil drain plug, magnetic | 1 | ||
| - | 90012301130 | Seal ring | A 22 X 27 | 1 | |
| - | 93010139101 | Gasket | for; oil strainer | 2 | |
| - | 90160930900 Replaced by 90160930901 | Connector (screened) for ignition leads | ignition wire; Discontinued part | 2 | |
| - | 90160930901 | Connector (screened) for ignition leads | ignition wire | 2 | |
| - | 90110894801 | Gasket set | for; mixture control unit | 1 | |
| - | 91442340102 Replaced by 91442340108 | Clutch cable | Discontinued part | 1 | |
| - | 91442340108 | Clutch cable | 1 | ||
| - | 90110439101 Replaced by 90110439104 | Cylinder head gasket | 3 | ||
| - | 93010519300 Replaced by 93010519306 | Gasket | for; crankcase; and; timing case; Discontinued part | 1 | |
| - | 93010519305 Replaced by 93010519306 | Gasket | for; crankcase; and; timing case | 1 | |
| - | 93010519103 | Gasket | for; timing case cover; left | 1 | |
| - | 93010519201 Replaced by 93010519204 | Gasket | for; timing case cover; Discontinued part; right | 1 | |
| - | 93010519203 Replaced by 93010519204 | Gasket | for; timing case cover; Discontinued part; right | 1 | |
| - | 93010519204 | Gasket | for; timing case cover; right | 1 | |
| - | 93010519400 Replaced by 93010519404 | Gasket | for; cover; Camshaft housing; Discontinued part; upper | 2 | |
| - | 93010519402 Replaced by 93010519404 | Gasket | for; cover; Camshaft housing; Discontinued part; upper | 2 | |
| - | 93010519404 | Gasket | for; cover; Camshaft housing; upper | 2 | |
| - | 93010519500 Replaced by 93010519507 | Gasket | for; cover; Camshaft housing; Discontinued part; lower | 2 | |
| - | 93010519502 Replaced by 93010519507 | Gasket | for; cover; Camshaft housing; Discontinued part; lower | 2 | |
| - | 93010519505 Replaced by 93010519507 | Gasket | for; cover; Camshaft housing; Discontinued part; lower | 2 | |
| - | 93010519506 Replaced by 93010519507 | Gasket | for; cover; Camshaft housing; Discontinued part; lower | 2 | |
| - | 93010519507 | Gasket | for; cover; Camshaft housing; lower | 2 | |
| - | 91472100710 | Bag | 914-6 | 1 | |
| - | 91472190210 | Bag | 1 | ||
| - | 91472101310 Replaced by 91172101300 | Bag | with:; fuse | 1 | |
| - | 99917001091 Replaced by 99917018690 | Spark plug | Discontinued part; - BOSCH -; NEZ | 3 | |
| - | 99917018690 | Spark plug | BOSCH; NEZ | 3 | |
| - | 90110590150 Replaced by 90110590151 | Set of valve springs | Discontinued part; inner; outer | 1 | |
| - | 90110590151 | Set of valve springs | inner; outer | 1 | |
| - | 90110541700 | Cotter, split | 2-part | 2 | |
| - | 91110419303 Replaced by 96410411107 | Valve guide seal | valve | 1 | |
| - | 90110537002 | Adjusting screw | valve | 2 | |
| - | 99903400500 | Nut | 2 | ||
| - | 91110717601 Replaced by 91110717603 | Oil drain plug, magnetic | 1 | ||
| - | 90012301130 | Seal ring | A 22 X 27 | 1 | |
| - | 90160930900 Replaced by 90160930901 | Connector (screened) for ignition leads | ignition wire; Discontinued part | 2 | |
| - | 90160930901 | Connector (screened) for ignition leads | ignition wire | 2 | |
| - | 90110894801 | Gasket set | for; mixture control unit | 1 | |
| - | 91442340102 Replaced by 91442340108 | Clutch cable | Discontinued part | 1 | |
| - | 91442340108 | Clutch cable | 1 | ||
| - | 91442340109 | Clutch cable | 1 | ||
| - | 93010519103 | Gasket | cylinder | 3 | |
| - | 90110439101 Replaced by 90110439104 | Cylinder head gasket | 3 | ||
| - | 93010519300 Replaced by 93010519306 | Gasket | for; crankcase; and; timing case; Discontinued part | 1 | |
| - | 93010519305 Replaced by 93010519306 | Gasket | for; crankcase; and; timing case | 1 | |
| - | 93010519103 | Gasket | for; timing case cover; left | 1 | |
| - | 93010519201 Replaced by 93010519204 | Gasket | for; timing case cover; Discontinued part; right | 1 | |
| - | 93010519203 Replaced by 93010519204 | Gasket | for; timing case cover; Discontinued part; right | 1 | |
| - | 93010519204 | Gasket | for; timing case cover; right | 1 | |
| - | 93010519400 Replaced by 93010519404 | Gasket | for; cover; Camshaft housing; Discontinued part; upper | 2 | |
| - | 93010519402 Replaced by 93010519404 | Gasket | for; cover; Camshaft housing; Discontinued part; upper | 2 | |
| - | 93010519404 | Gasket | for; cover; Camshaft housing; upper | 2 | |
| - | 93010519500 Replaced by 93010519507 | Gasket | for; cover; Camshaft housing; Discontinued part; lower | 2 | |
| - | 93010519502 Replaced by 93010519507 | Gasket | for; cover; Camshaft housing; Discontinued part; lower | 2 | |
| - | 93010519505 Replaced by 93010519507 | Gasket | for; cover; Camshaft housing; Discontinued part; lower | 2 | |
| - | 93010519506 Replaced by 93010519507 | Gasket | for; cover; Camshaft housing; Discontinued part; lower | 2 | |
| - | 93010519507 | Gasket | for; cover; Camshaft housing; lower | 2 | |
| - | PCG91410010 | Schluessel-etui | 914 | Tartan cloth; orange | 1 |
Current pricing is available free after signing in on the interactive catalog.
Superseded part numbers on this diagram
These original factory numbers have been replaced. Order the replacement number shown.
- 91472100110 Tool kit bag → Replaced by PCG91472110
- 99919500702 Keys → Replaced by 99919501302
- 99910700302 Pliers combination → Replaced by 99910700502
- 91472101310 Bag → Replaced by 91172101300
- 411012021 Tool kit bag → Replaced by PCG91472110
- 91472101110 Jack → Replaced by 91172101105
- 91472202110 Bracket for jack → Replaced by 91172202101
- N 01781132 Spark plug → Replaced by 99917017990
- 99917016590 Spark plug → Replaced by 99917017990
- 90110590150 Set of valve springs → Replaced by 90110590151
- 91110419303 Valve guide seal → Replaced by 96410411107
- 91110717601 Oil drain plug, magnetic → Replaced by 91110717603
- 90160930900 Connector (screened) for ignition leads → Replaced by 90160930901
- 91442340102 Clutch cable → Replaced by 91442340108
- 90110439101 Cylinder head gasket → Replaced by 90110439104
- 93010519300 Gasket → Replaced by 93010519306
- 93010519305 Gasket → Replaced by 93010519306
- 93010519201 Gasket → Replaced by 93010519204
- 93010519203 Gasket → Replaced by 93010519204
- 93010519400 Gasket → Replaced by 93010519404
- 93010519402 Gasket → Replaced by 93010519404
- 93010519500 Gasket → Replaced by 93010519507
- 93010519502 Gasket → Replaced by 93010519507
- 93010519505 Gasket → Replaced by 93010519507
- 93010519506 Gasket → Replaced by 93010519507
- 99917001091 Spark plug → Replaced by 99917018690
