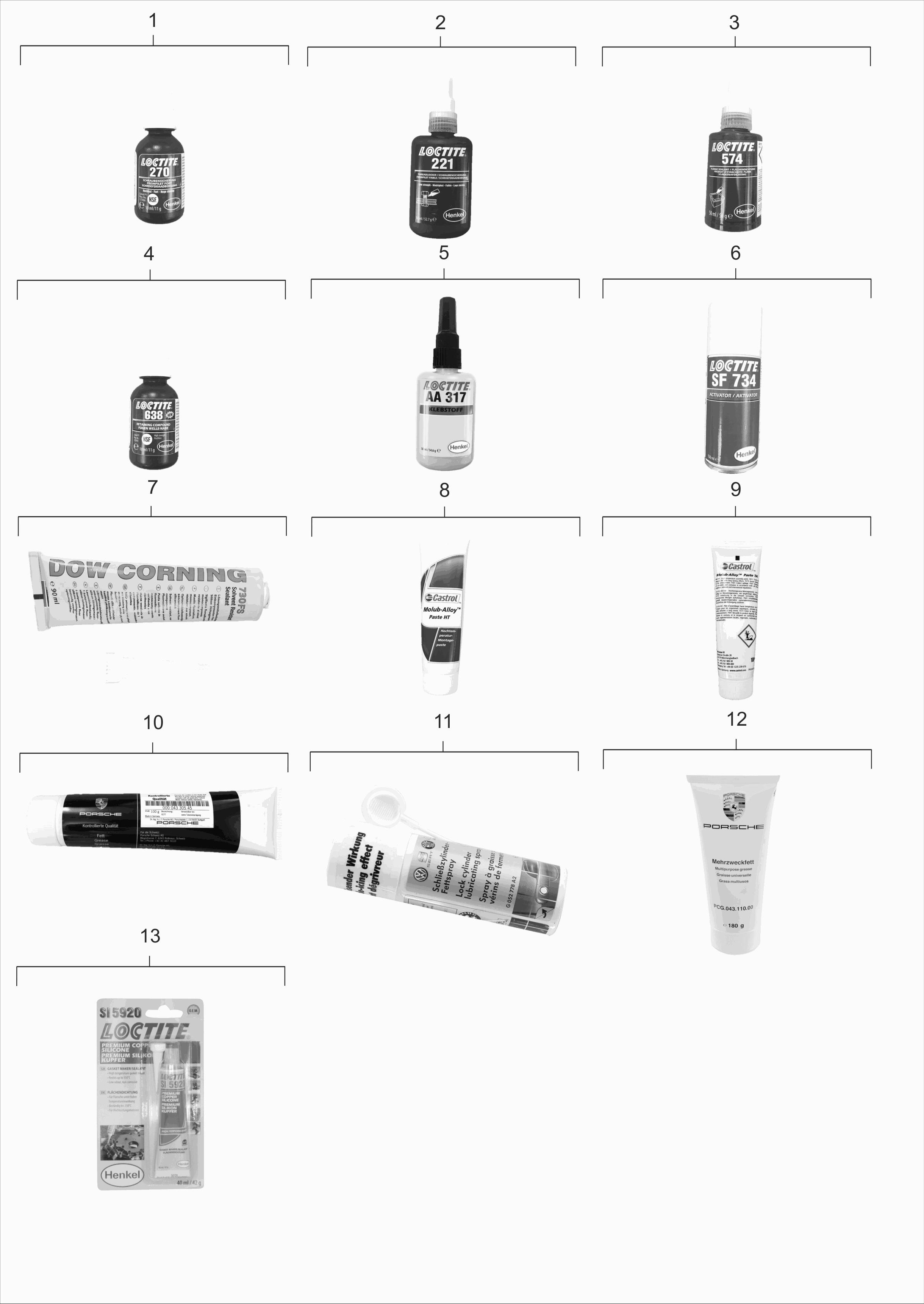

Illustration 198-10
Liquid locking fluid
13 parts on this diagram - Porsche 914, 1970-1976
See current prices & color 3D diagramsFree to browse part numbers here. Sign in free to unlock pricing, color-rendered diagrams, and the full interactive catalog.
Open in catalog →
| Pos | Part Number | Description | Model | Remarks | Qty |
|---|---|---|---|---|---|
| 1 | 92810192100 Replaced by 00004330604 | Liquid locking fluid | LOCTITE 270; hight hard; 10ml | ||
| 2 | 00004330648 | Liquid locking fluid | LOCTITE 221; 10ml; Low-strength | ||
| 3 | 00004301000 Replaced by 00004330518 | Sealant | LOCTITE 574; 50ml | ||
| 4 | 00004301100 Replaced by 00004330647 | Liquid locking fluid | LOCTITE 638; for; shaft; 10ml | ||
| 5 | 00004330646 | Adhesive | LOCTITE 317; 50ml | ||
| 6 | 00004330639 | Activator | AKTIVATOR NF 736; 180ml | ||
| 7 | PCG04301901 | Sealant | SILASTIK 730 RTV; 90ml | ||
| 8 | 00004300400 | Assembly paste | 90 gram; OPTIMOLY - HT; COF | ||
| 9 | 00004302000 Replaced by 00004330508 | Assembly paste | 100 gram; silver; OPTIMOLY - TA; COF | ||
| 10 | 00004311001 Replaced by 00004330545 | High temperature grease | 100 gram; OPTITEMP PU35; COF | ||
| 11 | G 052778A2 Replaced by 00004330627 | Lock cylinder lubricant spray | Spray can; COF | ||
| 12 | PCG04311000 | Grease | Porsche Classic; 370 g | ||
| 13 | PCG04330087 Replaced by 00004330510 | Sealant | engine; 40ml |
Current pricing is available free after signing in on the interactive catalog.
Superseded part numbers on this diagram
These original factory numbers have been replaced. Order the replacement number shown.
- 92810192100 Liquid locking fluid → Replaced by 00004330604
- 00004301000 Sealant → Replaced by 00004330518
- 00004301100 Liquid locking fluid → Replaced by 00004330647
- 00004302000 Assembly paste → Replaced by 00004330508
- 00004311001 High temperature grease → Replaced by 00004330545
- G 052778A2 Lock cylinder lubricant spray → Replaced by 00004330627
- PCG04330087 Sealant → Replaced by 00004330510
