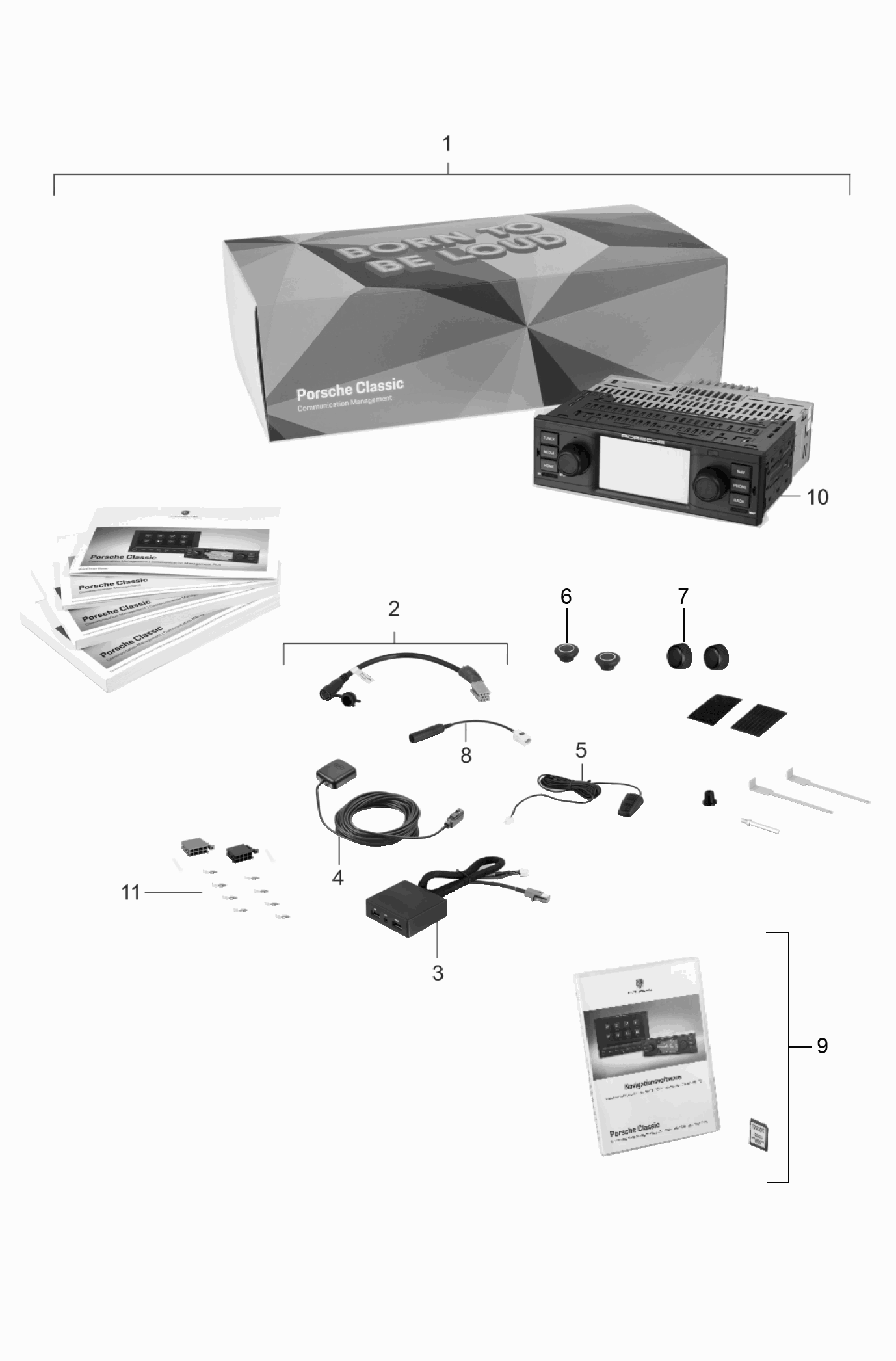

Illustration 988-05
Communicat
16 parts on this diagram - Porsche 914, 1970-1976
See current prices & color 3D diagramsFree to browse part numbers here. Sign in free to unlock pricing, color-rendered diagrams, and the full interactive catalog.
Open in catalog →
| Pos | Part Number | Description | Model | Remarks | Qty |
|---|---|---|---|---|---|
| 1 | 91164559100 | Communicat | without:; SD CARD; also use: | ||
| 2 | 91164231300 | Connecting line | Porsche Classic; radio; Navigation system; SIRIUS | 1 | |
| 3 | 91164551300 | Multimedia | 1 | ||
| 4 | 91164550500 | -gps- aerial | 1 | ||
| 5 | 91164550700 | Microphone | 1 | ||
| 6 | 91164559300 | Rotary knob | 1 pc; CLASSIC | 1 | |
| 7 | 91164559500 | Rotary knob | 1 pc | 1 | |
| 8 | 91164557450 | Antenna-adapter-plug | DIN/FAKRA | 1 | |
| 9 | 99664250200 Replaced by PCG642504C | SD CARD | Discontinued part; Q2/2019 | 1 | |
| 9 | 99664250201 Replaced by PCG642504C | SD CARD | Q2/2021 | 1 | |
| 9 | PCG642504C | SD CARD | Q2/2025 | 1 | |
| 10 | 91164529700 | Retaining frame | radio; DIN 1 | 1 | |
| 11 | 91164529900 | Connector housing | complete; 2 parts | 1 | |
| - | 91164220901 | Adapter | Connecting line; amplifier; BLAUPUNKT; ALPINE; BEA | 1 | |
| - | 91164240000 | Adapter | loudspeaker; for power supply; DIN/ISO | 1 | |
| - | 99364541300 | Connection cable | radio; amplifier; NOKIA | 1 |
Current pricing is available free after signing in on the interactive catalog.
Superseded part numbers on this diagram
These original factory numbers have been replaced. Order the replacement number shown.
- 99664250200 SD CARD → Replaced by PCG642504C
- 99664250201 SD CARD → Replaced by PCG642504C
